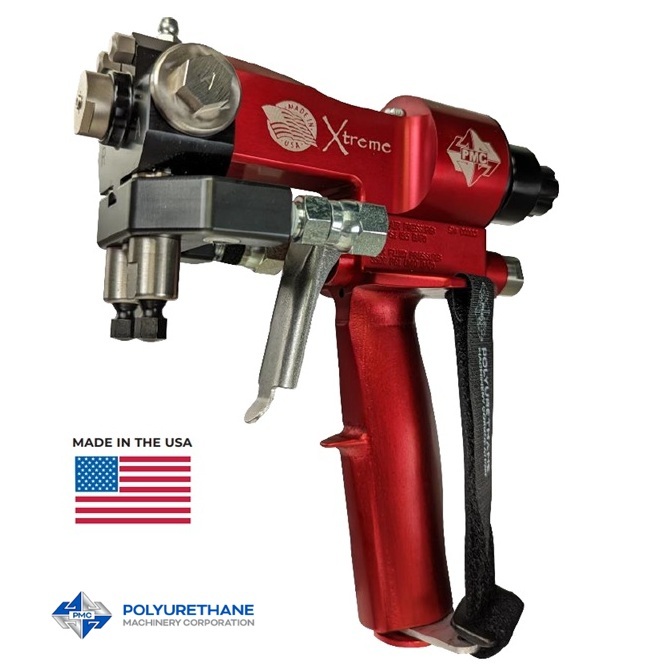

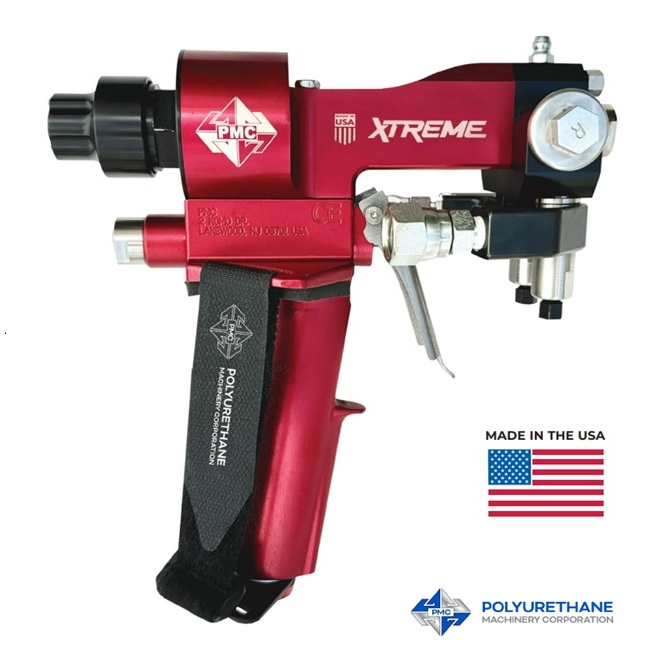

XTREME SPRAY GUN

Select Gun Block Material & Chamber Size

Choose from the Dropdown arrow:
$2,623.00

$2,100.00

  • In stock

 XTREME STANDARD FEATURES



The technology behind PMC’s Xtreme Spray Gun’s design combines the best in design and materials, providing a lightweight spray gun that minimizes issues and is easy to maintain.



·  Lightweight Compact Design



·  Engineered Resin Side Seals



·  Enhanced Trigger Design



·  Cylinder Check Valve Design



·  Diamond-Plating Mixing Chambers



·  Advanced Pattern Development & Mixing

General Specs
Weight (w/o coupling block)
2.4 lbs (1.1 kg)
Weight (w/coupling block)
3.1 lbs (1.4 kg)
Maximum Working Pressure
3,500 psi (245 bar)
Maximum Air Pressure
125 psi (8.6 bar)
Maximum Production (1:1 Ratio)
50 lbs/min (22.7 L/min)
Minimum Production (1:1 Ratio)
3.1 lbs/min (1.55 L/min)
Dimensions
7.1”H x 3.4”W x 7.5” L
(181mm x 87mm x 189mm)

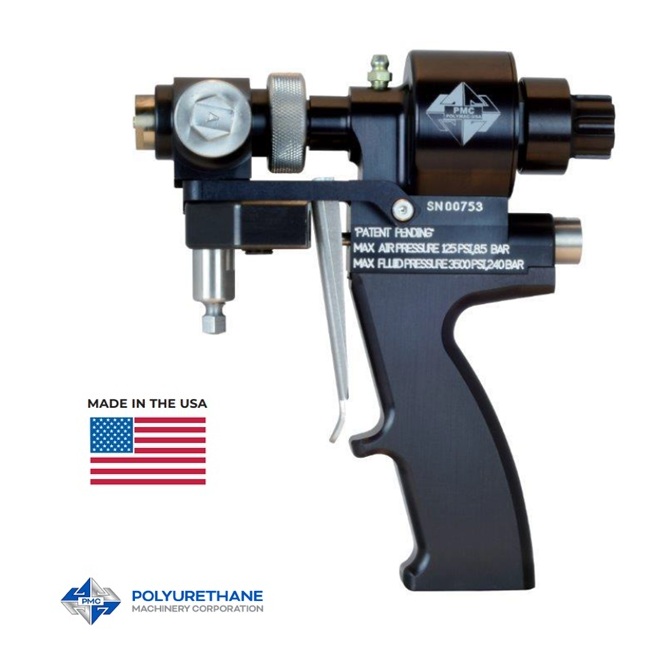

PMC AP-2 Spray Gun

Select Gun Block Material & Chamber Size

Available Sizes: .01X, 000, 00, 01, 02, 02X, 03, 04, 1.0 or 1.5X
Choose from the dropdown menu:
$3,202.00

$3,050.00

  • In stock

AP-2 FEATURES



·  Lightweight Compact Design

·   Simple Disassembly

·  Simple Maintenance Access

·  Purge Air Check Valve Prevents Chemical from entering the Air Passages of the Gun



Advanced Design for Pattern and Mixing

· Separate Hardened Pattern Control Tip (PCT) with Adhesion Resistant Coating

· Blaster Tip Designed to Spray a Stream Up to 15 feet (5 meters)

· Series of Air Passages to Reduce Material Buildup on the Spray Tip

· Full Range of Round and Flat PCTs

General Specs
Weight (w/o coupling block)
2.2 lbs (1.01 kg)
Weight (w/coupling block)
2.9 lbs (1.30 kg)
Maximum Working Pressure
3,500 psi (240 bar)
Maximum Air Pressure
125 psi (8.6 bar)
Maximum Production (1:1 Ratio)
40 lbs/min (18 kg)
Minimum Production (1:1 Ratio)
3.3 lbs/min (1.5 kg)
Dimensions
6.6”H x 3.3”W x 7.2” L
(19cm x 7.6cm x 16.5 cm)

Download AP-2 Spray Gun Service Manual
